| Miejsce pochodzenia | CHINA |
| Nazwa handlowa | DAWNERGY |
| Orzecznictwo | ANATEL,CE,ROHS |
| Numer modelu | DA-GJY |

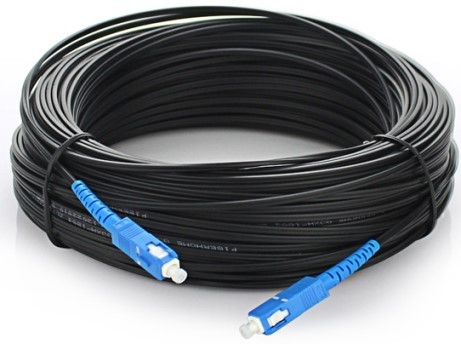

FTTH drop cable patchcord
Dawnergy's FTTH drop cable patchcord construction is that the optical fiber unit is positioned in the center. Two parallel FRP or steel strength members are placed at the two sides. A steel wire as the additional strength member is also applied. The cable is completed with a black LSZH sheath.
Features
Optical Cable Drawing
Fiber Optic Cable Specifications
| Parameters | Specifications | |
| Fiber Type | SM (G652D, G657A) or MM (OM1~OM5) | |
| Fiber Core | 1 or 2 | |
| Cable Dimension (mm) | (2.0±0.1) × (5.0±0.1) | |
| Cable Weight (kg/km) | 20 | |
| Messenger Wire | Steel wire | |
| Strength Member | FRP or steel | |
| Jacket | LSZH | |
| Tensile Strength (N) | Short Term | 600 |
| Long Term | 300 | |
| Crush Resistance (N/100mm) | Short Term | 2200 |
| Long Term | 1000 | |
| Bending Radius (mm) | Dynamic | 60 |
| Static | 30 | |
| Cable Attenuation (After Cable) (dB/km) | SM Fiber @1310nm | ≤0.4 |
| SM Fiber @1550nm | ≤0.3 | |
| Operating Temperature (°C) | -20 ~ +60 | |
| Storage Temperature (°C) | -20 ~ +60 | |
Other Specifications
| Parameters | Specifications |
| Connector Type | SC/FC/LC/ST/E2000 or customized |
| Insertion Loss (dB) | ≤0.3 |
| Return Loss (dB) | ≥ 50 (UPC), ≥ 60(APC), ≥ 30 (MM) |
| Length (m) | As request |
| Tolerance (m) |
0~+0.1, L≤10, 0~+0.2, 10~20, 1%×L, L≥20, L=patch cord length |
| Temperature Range (°C) | -20~+60 |
