24-432F Fiber Optic Pigtail Fanout With Good Repeatability And High Temperature Stability

Name: 24-432F Fiber Optic Pigtail Fanout With Good Repeatability And High Temperature Stability
Brand: Dawnergy
SKU: DA-SC-XXM-SM-FO-0.9L
Price: 1500 USD
Availability: InStock
Rating: 4.9 (150 reviews)

Miejsce pochodzenia	CHINA
Nazwa handlowa	Dawnergy
Orzecznictwo	ANATEL,CE,ROHS
Numer modelu	DA-SC-XXM-SM-FO-0.9L

Szczegóły produktu

Brand:

Dawnergy

Name:

12~432F Fiber Optic Pigtail Fanout

Connector:

SC/UPC

Fiber:

G652D

Jacket Material:

PVC or LSZH

Dimension:

250µm±15µm

Storage Temperature:

-45℃~+85℃

High Light:

LSZH Fiber Optic Pigtail Fanout

Industrial Fiber Optic Pigtail Fanout

Warunki płatności i wysyłki

Minimalne zamówienie

1000

Cena

1500 USD

Zasady płatności

T/T, L/C, D/A, D/P

Możliwość Supply

100000pcs per day

Opis produktu

12~432F Fiber Optic Pigtail Fanout

Fiber optic pigtails provide a fast way to make communication devices in the field. They are designed, manufactured and tested according to protocol and performance dictated by the industrial standards, which will meet your most stringent mechanical and performance specifications.

Features

Low insertion loss
High return loss
Good repeatability
High temperature stability

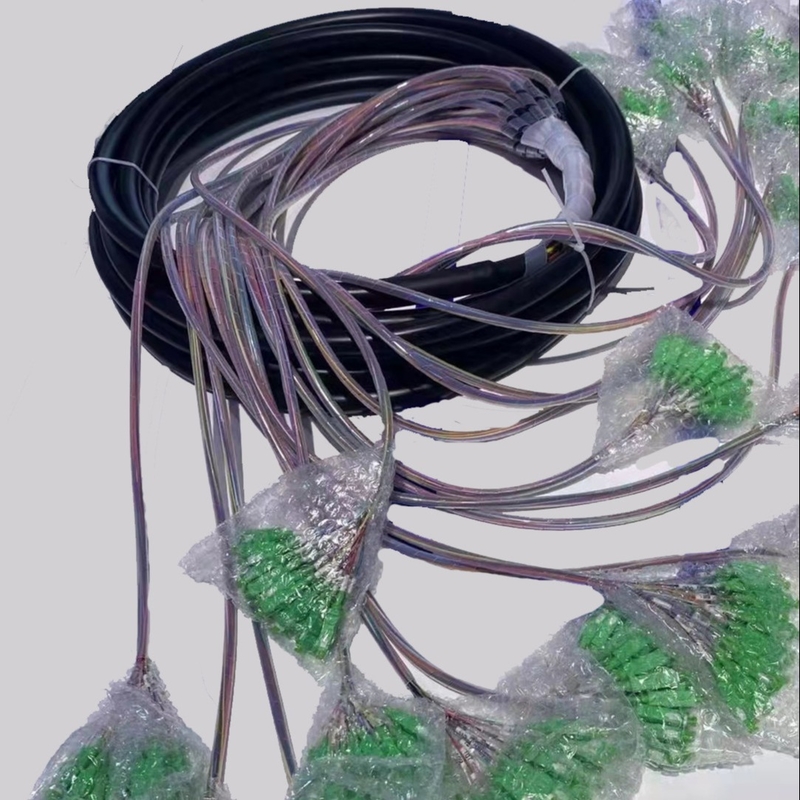

24-432F Fiber Optic Pigtail Fanout With Good Repeatability And High Temperature Stability 0

Cable Profile View

Cable Parameters

Items		Specifications
Fiber Count		24~432F
Colored Coating Fiber	Dimension	250µm±15µm
Colored Coating Fiber	Color	Blue,Orange,Green,Brown, Grey,Natural,Red,Black, Yellow,Purple,Pink,Aqua
Colored Coating Fiber wish Color Point	Dimension	250µm±15µm
Colored Coating Fiber wish Color Point	Color	Blue,Orange,Green,Brown, Gray,White,Red,Black, Yellow,Purple,Pink,Aqua
Fibers in One Tube		12 fibers (24,48F) 24 fibers (288,432F)
Loose Tube	Dimension	1.95 mm±0.05mm (24, 48F) 2.8mm±0.1mm (288,432F)
	Material	PBT
	Color	Blue,Orange,Green,Brown (24,48F) Red,Green,Natural,Natural, Natural,Natural,Natural,Natural, Natural,Natural,Natural,Natural (288,432F)
Central Strength Member	Diameter	1.5mm (24, 48F) 3.0mm (288F) 2.8mm (288F)
Central Strength Member	Material	FRP
Outer Jacket	Dimension	9.8 mm±0.5mm (24, 48F) 19.0mm±0.5mm (288F) 19.5 mm±0.5mm (432F)
	Material	PE
	Color	Black

Mechanical and Environmental Characteristics

Items	Unite	Specifications
Tension(Long Term)	N	600 (24, 48F) 1000 (288,432F)
Tension(Short Term)	N	1500 (24, 48F) 3000 (288,432F)
Crush(Long Term)	N/10cm	300
Crush(Short Term)	N/10cm	1000
Min. Bend Radius(Dynamic)	mm	20D
Min. Bend Radius(Static)	mm	10D
Installation Temperature	℃	-10～+50
Operating Temperature	℃	-20～+60
Storage Temperature	℃	-20～+60

Ferrule End Face Inspection Criteria
24-432F Fiber Optic Pigtail Fanout With Good Repeatability And High Temperature Stability 2

Defects	Zone A (Area Near Core) ≤40um	Zone B (Cladding) 40~125um	Zone C (Coating) 125~250um
Scratch (width)	None	Light scratch (white): None	>3um: None
		Dark scratch (black): None
Pits & Irremovable material (Diameter)	None	≥2um: None <2um: 2pcs allowed	≥10um: None <10um: total<20um
Chipping (Diameter)	None
Crack/dust/contamination	None
Epoxy ring	Width<2um, total length≤1/2 fiber diameter

Ferrule End Face Geometry Parameters

Parameters	UPC	APC
Radius of Curvature	10~25mm	5~12mm
Fiber Undercut or Protrusion	≤ 100 nm	≤ 100 nm
Apex Offset	≤ 50 μm	≤ 50 μm
Polishing Angle		8 +/- 0.3 degree
