| Miejsce pochodzenia | CHINA |
| Nazwa handlowa | Dawnergy |
| Numer modelu | DA-PFC-(A)SC32-H-X |

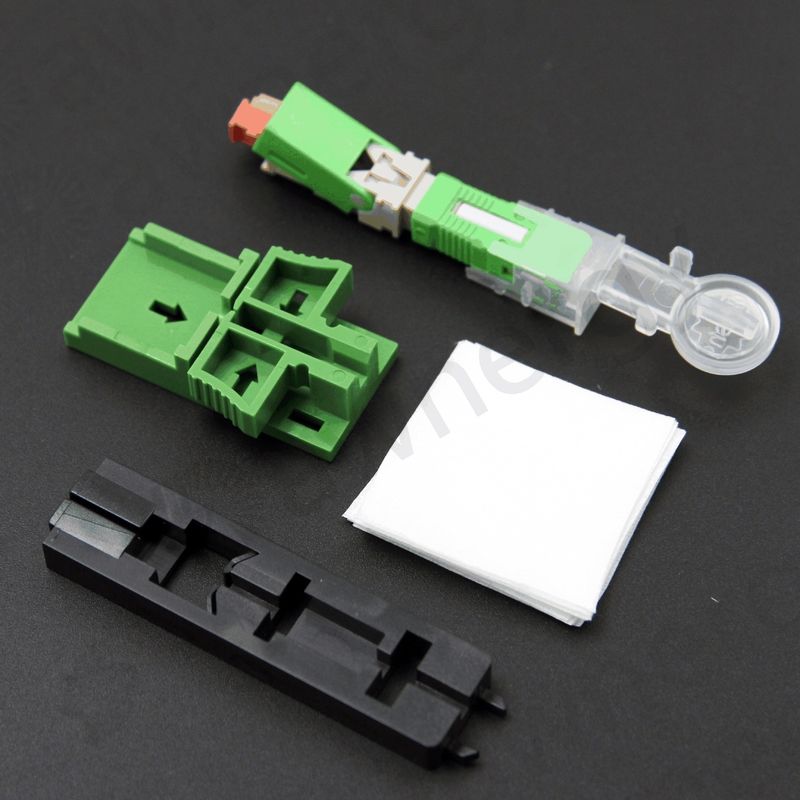

DA-PFC-(A)SC32-H-X Fast Connector
Dawnergy’s pre-embedded fast connector terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. It is widely used in FTTH projects.
Features
Applications
Specification
| Parameters | Specification |
| Applicable Cable | 3.0 x 2.0mm drop cable |
| Fiber Type | SM |
| Locking Method | Mechanical (Click type) |
| Connector Type | SC/APC or SC/UPC |
| Composition | Thermoplastic material and zirconia ferrule |
| Insertion Loss (dB) | ≤ 0.3 (average) |
| Return Loss (dB) | ≥ 50 (UPC) ≥ 55 (APC) |
| Tensile (N) | ＞30 |
| Re-usable | up to 5 times maintaining its mechanical capabilities |
| Operating Temperature (℃ ) | -45 ~ +85 |
Order Information
DA-PFC-SC32-H-C-X
Pre-embedded type, SC/UPC; Applicable for 3.0 x 2.0mm drop cable, 3mm, SM, Click locking method
DA-PFC-ASC32-H-C-X
Pre-embedded type, SC/APC; Applicable for 3.0 x 2.0mm drop cable, 3mm, SM, Click locking method
