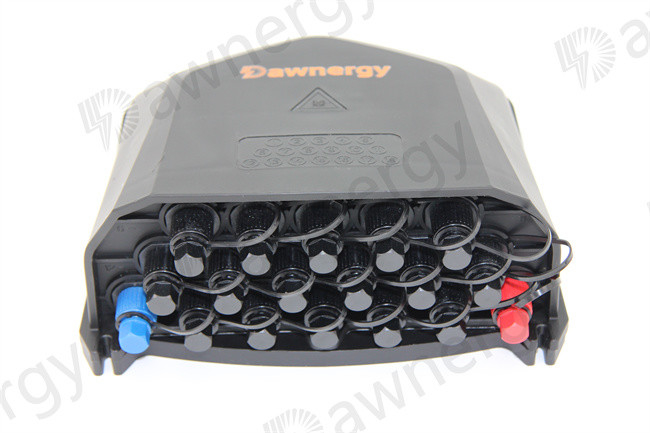

18 Core Pre-Terminated Fiber Optic Distribution Box With 1x17 Uneven PLC Splitter

DA-FDB-18B-WPC-19 Fiber Optic Distribution Box IP68 Waterproof Level

FTTH Pre-terminated Application

Refer to above FTTH per-terminated network application, DA-FDB-18B-WPC-19 FAT is a pre-terminated box which provide harden adaptor to connect with end user. It will be sealed by hot welding technology and never open after production. The engineer could open broadband service with simple plug and play pre-terminated drop cable. FAT support many network application,

1:8/2:16 or other customized non-uniform mini splitter. FAT box support aerial mounting, pole mounting and wall mounting installation mode.

Features

• Robust environmental performance, withstand extreme in temperature and conditions
• Technical-friendly features; intuitive design for ease of use.
• Meet IP68 waterproof level.
• Comply with Dawnergy per-terminated connector
• Plug and play, easy operation to save TCO

Applications

Specifications

Environmental requirement

• Working temperature:-40℃～+85℃
• Relative humidity:≤85%(+30℃)
• Atmospheric pressure:70KPa～106Kpa

Thunder-proof technical datasheet

• The insulation resistance between the grounding device and the metal parts of the box is no less than 2 MΩ/500V(DC); IR≥2 MΩ/500V

• The voltage resistance between the grounding device, and the box and its metal parts is no less than 3000V(DC) /min, no puncture, no flashover; U≥3000V

Installation

Pole Mounted Aerial Mounted Wall Mounted

Accessories

Ordering Information

DA-FDB-18B-WPC-19

Black; PP; With the adaptor panel for max. 18 pieces of Dawnergy water-proof SC type adapters, Dimensions (mm): 224*220*110; Wall mounting accessories included; PLC splitter NOT included
