System zarządzania włóknem optycznym
>
|
| Miejsce pochodzenia | CHINA |
| Nazwa handlowa | DAWNERGY |
| Orzecznictwo | CE |
| Numer modelu | DA-MFDB-24-1 |

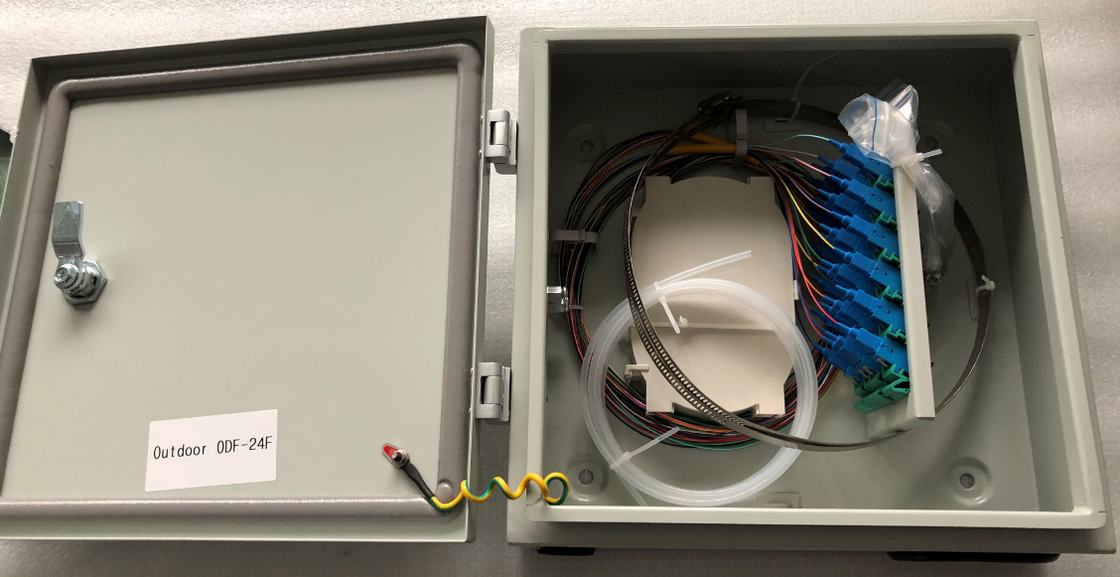

Dawnergy’s DA-ODB series fiber optic terminal boxes are used for the connection and termination of fibers and protect spliced fiber.
Features
Applications
Specifications
| Parameters | Specification |
| Maximum Number of Cores | 24 |
| Adapter Type | SC |
| Installation Method | Indoor wall mounted |
| Box Material | Cold-rolled steel |
| Dimensions(mm) | 350 (L) × 300 (W) × 80 (H) |
Standard Package
| No. | Name | Unit | Quantity |
| 1 | Fiber Optic Terminal Box | set | 1 |
| 2 | Protective Sleeves | pieces | 24 |
| 3 | Keys | pieces | 2 |
| 4 | Screw Set | set | 1 |
| 5 | Cable Tie | pieces | According to fiber cores |
| 6 | Protective Tube | piece | 1 |
Ordering Information
| Model | Name | Description |
| DA-ODB-24A-SC-1 | Fiber Optic Terminal Box | Indoor type; Material: Cold-rolled steel; Max.24 cores; SC type adapter panel |
Note: Adapters and pigtails are optional
