| Miejsce pochodzenia | CHINA |
| Nazwa handlowa | DAWNERGY |
| Orzecznictwo | CE ROHS ANATEL |
| Numer modelu | DA-FDB-8C-PA-16 |

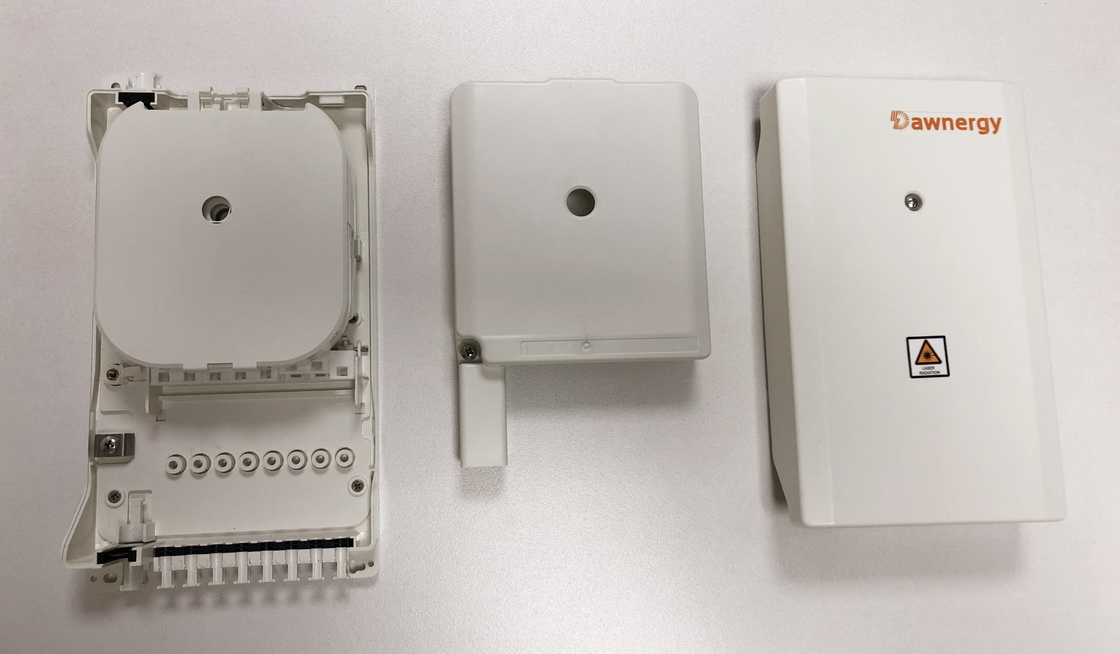

DA-FDB-8C-PA-16 Fiber Optic Distribution Box
Dawnergy’s fiber optic distribution boxes are widely used as a termination point for the feeder cable to connect with the drop cable in the FTTx communication network system. The fiber splicing, splitting and distribution can be done in these boxes. These series of boxes provide solid protection and management for the FTTx networks.
Application
Features
Specifications
1.Environmental specification
Working temperature:-40℃～+85℃
Relative humidity: ≤85%
Atmospheric pressure:70KPa～106Kpa
2.Thunder-proof technical specification
| Box Material |
Size (mm) |
Max Capacity | Into the largest cable diameter (mm) | Cable outlet (mm) | |
| Splicing | Adapter Panel | ||||
| PC+ABS | 237*126*50 |
1tray for 24F 1tray for 16F |
8pcs SC | 10 | 5 |
| Box Color | White | ||||
Standard Package
| No. | Name | Unit | Quantity |
| 1 | Fiber Optic Distribution Box | piece | 1 |
| 2 | 3M Anti Slip Tape 2.5cm x 12cm | piece | 1 |
| 3 | Screws | pieces | 4 |
| 4 | Dowels | pieces | 4 |
| 5 | Cable Tie 8cm | pieces | 10 |
| 6 | Fusion Protection Sleeve 60mm | pieces | 8 |
| 7 | User Manual | piece | 1 |
| 8 | SC/APC Adapter | pieces | 8 |
| 9 | SC/APC Colored Pigtail 900um LSZH | pieces | 8 |
Ordering Information
| Part Number | Name | Description |
| DA-FDB-8C-PA-16 | Fiber Optic Distribution Box | White; PC+ABS; 2 cable inlet ports and 8 drop cable outlet ports; With wall mount accessories; full loaded 8pcs SC/APC adapters and 8pcs colored pigtail; Customer logo can be put on the box. |
