Solution Overview

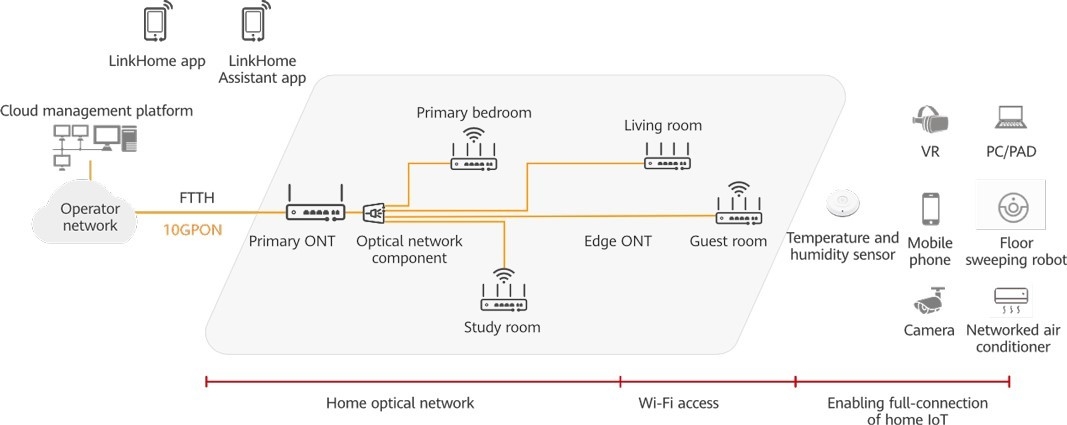

       The Fiber to the Room (FTTR) all-optical Wi-Fi solution directly extends optical fibers to each room, achieving gigabit coverage everywhere at home. The Dawnergy Inspiration Lab proposes an innovative photoelectric composite micro-optical cable and FTTR construction solution. As an FTTR solutions provider, Dawnergy has the technology and expertise necessary for optical network application.

Case of FTTR Reconstruction for a 200㎡ Three-Story Villa

• Network status before reconstruction

The broadband package is 1000 Mbps. The network cable in the living room is a category-5 cable and only four cores are used for termination. The speed is about 70 Mbps close to the wireless router. The second and third floors are far away from APs, and the Wi-Fi rate is about 20 Mbps.

• Networking design

1^st Floor                                                              2^nd Floor                                                            3^rdFloor

• Reconstruction effect

In this example, four optical cables are laid in the living room, room on the second floor, and room on the third floor through concealed pipes. Because the home information box is small and the internal space is limited, the primary ONT is placed on the TV cabinet in the living room. The IPTV is connected to the IPTV network port on the primary ONT. There are strong-current cables in the weak-current pipe of another room on the second floor. Therefore, the optical cable is routed in exposed mode.

• After the reconstruction, the Wi-Fi speed tested at multiple points in the villa exceeds 1000 Mbps.

Related Products

• PLC Splitter: Dawnergy DA-PLC series, please refer to https://www.fiberopticalsplitter.com/sale-14315073-1xn-plug-in-type-plc-splitter.html

• Drop Cable (through a concealed pipe): Dawnergy DA-GJXFH series, please refer to https://www.fiberopticalsplitter.com/sale-14431743-da-gjxfh-ftth-drop-cable.html

• Connector assembled option1: Pre-embedded Fast Connector (used with drop cable): Dawnergy DA-PFC series, please refer to https://www.fiberopticalsplitter.com/sale-14449056-da-ffc-a-sc-a-1-fusion-type-field-assembly-fast-sc-connector.html

Connector assembled option2: Field assembled connector equipment: (Epoxy injecting, curing, polishing all in one): Dawnergy DA-PM100 series, please refer to https://www.fiberopticalsplitter.com/sale-15378106-da-pm100-field-assembled-connector-equipment-portable-for-5g.html

• Fiber optic face plate with pre-connectorized indoor 0.9mm transparent fiber optic cable (in exposed mode): Dawnergy DA-FBT-1X series, please refer to https://www.fiberopticalsplitter.com/sale-15377068-da-fdb-1x-a-fiber-optic-face-plate.html

*** Primary ONT and Edge ONT: Huawei OptiXstar series or other brand devices (customer owned) ***
